semi automatic laminated glass cutting machine
Products Description

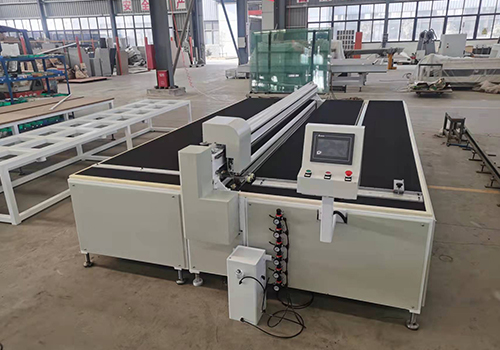

The semi-automatic laminated glass cutting machine adopts a high-strength square tube welding forming frame. After the laminated glass is loaded to table, it is driven by a synchronous belt. It adopts PLC display and control and imported electrical components. It adopts a human-machine interface for easy operation.

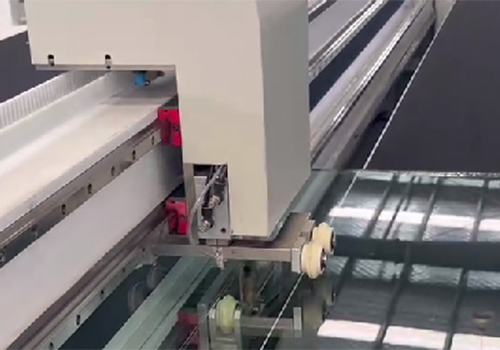

- The cutting speed of the semi-automatic laminated glass cutting machine can be adjusted, and the upper and lower blades are synchronized and cut in the same position.
- The upper blade of the laminated glass cutting machine is equipped with a glass breakout wheel to automatically press the lower layer of laminated glass;
- There is pneumatic pressure when the top rod breaks the glass to ensure the breaking effect

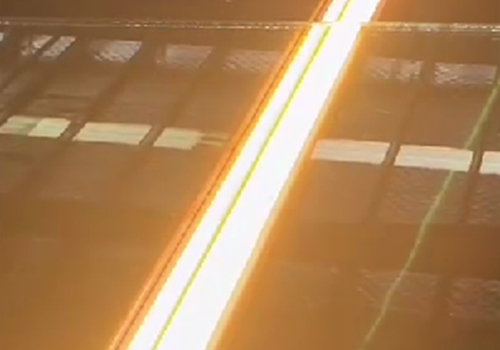

the machine equips heating function, ensure breakout of the laminating film.
Technical Parameters
Cutting precision | ≤±0.50mm |
Diagonal accuracy | ≤1.0mm/m |
Max. Cutting size | 3800*2600mm（special size can be customized) |
Min. Cutting size | 150*150mm |
Cutting thickness | 2+0.38+2—-8+3.04+8mm |
Cutting efficiency | 1sheet/2—4min |
Cutter life | 30,000m–50,000m |
Operator | 1－2 people |
Packing size | 4800*1600*1700mm |
Voltage | 380V/50HZ（Configurable transformer） |
The installed power | 13.5Kw |
Weight | 1800Kg |
