cnc laminated glass cutting machine
CNC Water Jet Glass Cutting Machine
The CNC Water Jet Glass Cutting Machine is a professional industrial cold‑cutting equipment specially developed for the glass processing industry. Different from traditional blade cutting and thermal cutting, it adopts abrasive water jet cutting technology to realize crack‑free, burr‑free and stress‑free forming cutting for all kinds of glass. Equipped with full‑axis high‑precision transmission system, dual‑support Y‑axis structure and exclusive automatic lubrication system, the machine features stable operation, high cutting accuracy and ultra‑long service life. The detachable bed and water tank design greatly reduces transportation difficulty and later maintenance pressure, making it the ideal processing equipment for architectural glass, decorative glass and special‑shaped glass customization.
Products Description
We focus on structural optimization and durable design, solving the common pain points of traditional glass cutting equipment such as low precision, easy damage, difficult maintenance and inconvenient transportation:
- Dual‑Support Y‑Axis Bidirectional Drive: The Y‑axis adopts double support structure, matched with bidirectional ball screw and linear guide drive. It effectively improves the running stability of the cutting head, ensures ultra‑high cutting speed and positioning accuracy, and avoids cutting deviation and pattern distortion during high‑speed operation.
- Full‑Axis High‑Precision Configuration: Both X‑axis and Y‑axis are equipped with high‑quality precision ball screws and linear guide rails. The whole machine runs smoothly with small friction loss, realizing consistent high‑precision cutting for long‑term continuous production, meeting the requirements of high‑standard glass finishing.
- Exclusive Automatic Lubrication System: Equipped with a unique independent automatic lubrication device, which can regularly and quantitatively lubricate the transmission parts. Matched with high‑strength drag chains and special mobile flexible cables, it effectively reduces component wear, greatly extends the service life of the equipment, and reduces manual maintenance frequency and maintenance costs.
- Detachable Bed & Water Tank Design: The fuselage bed and water tank adopt split detachable structure, which can effectively reduce the pressure of sediment, sand and processed glass debris on moving parts. At the same time, it solves the problem of oversized whole machine transportation, facilitates container loading and long‑distance cross‑border transportation, and reduces transportation risks and costs.
- Zero Thermal Damage Cold Cutting Technology: Water jet cold cutting does not produce high temperature, thermal deformation and thermal stress on the glass surface. It completely avoids glass chipping, cracking and edge scorching, and the cutting finished product has smooth edges without secondary polishing.
Industry Application
Technical Parameters
Total power | 15KW |
Install power | 380V/50HZ(Can be customized) |
Minimum air pressure | 0.8MPa |
Equipment size | 7000*5000* 1450（ mm） |
Cutting the maximum length | 3700mm |
Cuting the minimum length | 250mm |
Glass thickness | 3+3 ~ 8+8mm |
The film thickness of laminated glass | 0.38mm—1.52mm |
Cutting speed | 100m/min |
Work table height | 900±50mm |
Positioning accuracy | ±0.25mm |
Straight line cutting accuracy | ±0.30mm |
Parallel precision | 0.20mm |
Diagonal accuracy | 0.5mm |
Industry Application
This CNC water jet glass cutting machine has strong compatibility and flexible cutting performance, and is widely used in various glass processing scenarios, especially suitable for special‑shaped, hollow, pattern and custom glass cutting that traditional equipment cannot complete:
- Architectural glass: curtain wall glass, partition glass, door and window fixed glass
- Decorative glass: art glass, patterned glass, carved glass, interior decoration glass
- Functional glass: laminated safety glass, mirror glass, ultrathin flat glass
- Custom processing: special‑shaped glass parts, glass furniture accessories, non‑standard hole and groove cutting
Details
Drawing paper
Drawing paper
Fuji driver

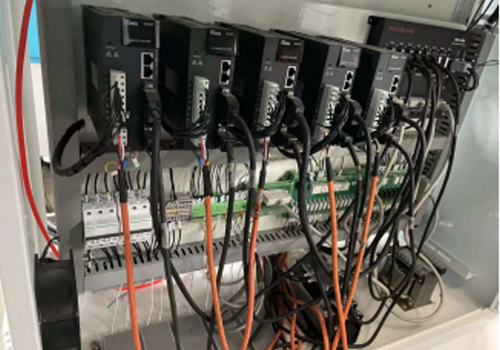

Main low voltage component Schneider and Germany NMH servo motor Fuji driver
Easy operation

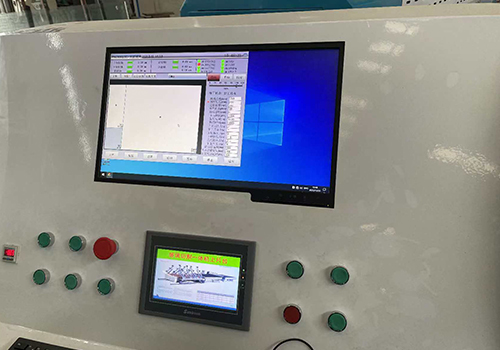

Operation panel and HMI screen with high quality optimization system
Reliable quality

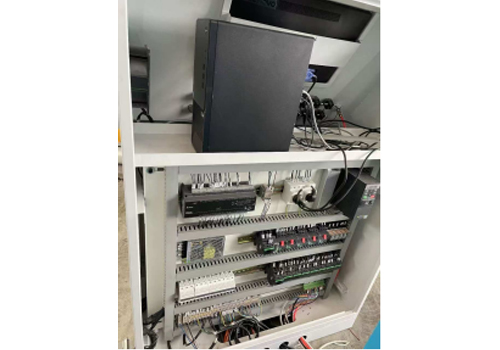

Delta inverter and OMRON switching power supply
Precision parts

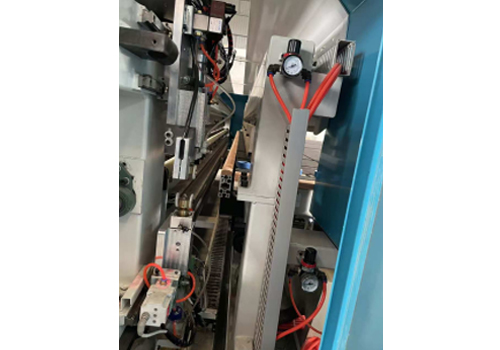

SMC Precision pneumatic controller
