pvc window welding and corner cleaning line
Machines can be easily used for in-line production to form an intelligent welding and cleaning line to produce PVC doors and windows.
Machines can be easily used for in-line production to form an intelligent welding and cleaning line to produce PVC doors and windows.
1.This production line only requires one person to operate, saving labor, greatly reducing labor costs and improving production efficiency.
2.Composed of welding unit, conveying unit, fully automatic corner cleaning unit, and palletizing unit.
3.Independently developed intelligent corner cleaning line. This production line only needs one person to operate independently to complete the production of rectangular frames. (Fan) welding, conveying, corner cleaning, and automatic palletizing.
4.Single shift output (8 hours) comprehensive output is about 320 rectangular frames (fans).
Voltage | 380V/ 50HZ | Total power | 15KW |
Working air pressure | 0.5-0.8Mpa | Air consumption | 400L/min |
Max welding window size | 2100mm×2500mm | Min welding window size | 490mm×600mm |
Welding height | 20mm-120mm | Welding profile width | 120mm |
Max transmission speed | 30m/min | Weight | 6200Kg |
Oversize dimension | 17500mm×5500mm×2200mm | ||

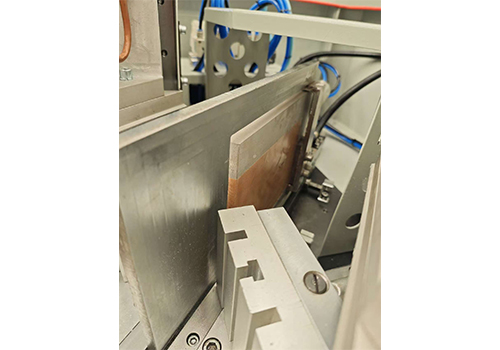

Positioning plate and heating plate can achieve constant temperature and precise welding

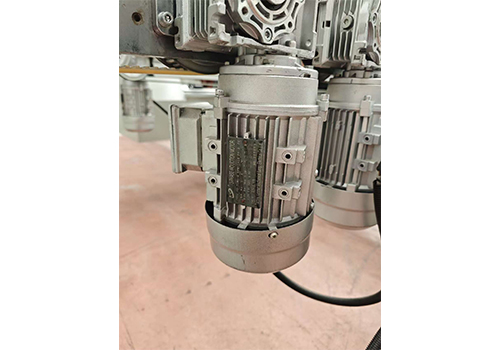

Whole line adopts servo motors

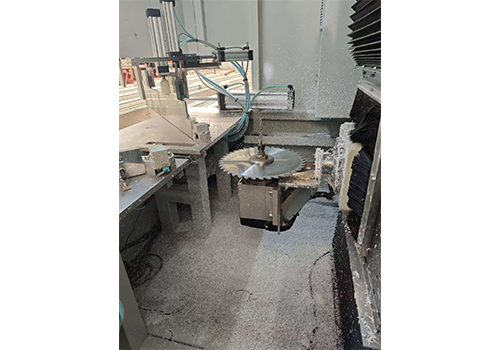

The two blades rotate to clean the upper, lower, outer and inner corners.

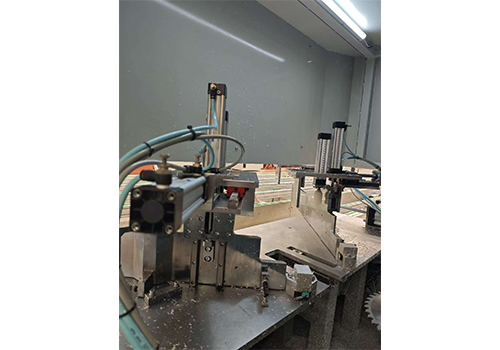

The cylinder drives the arm to automatically rotate the profile to complete the corner cleaning of the entire window frame.

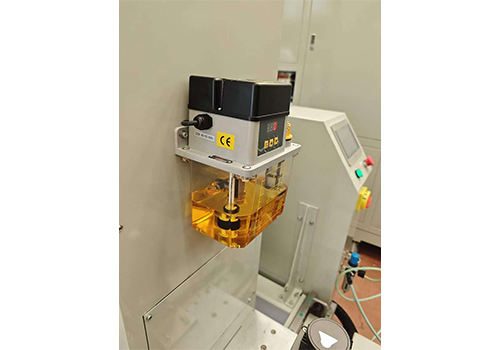

Electronic automatic lubrication system

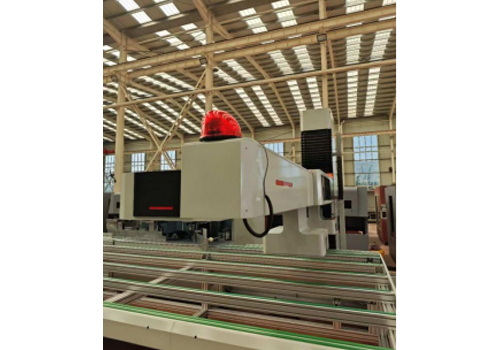

Palletizing safety automatic alarm device
