Cnc Four Corner Welding Machine
- Used to automatically complete the welding of rectangular frames (or sash) of plastic doors and windows.
Products Description
Realize automatic welding process for doors and windows.
1.Used to automatically complete the welding of rectangular frames (or sash) of plastic doors and windows.- 2.Welding is controlled by industrial computers and is equipped with a special CNC system independently developed by our company.
- 3.The welding unit body is arranged horizontally, the welding is stable and reliable, and the welding size can be automatically compensated. The welded products have high dimensional accuracy and high efficiency. The comprehensive output in a single shift (8 hours) is about 350 rectangular frames (fans).
Technical Parameters
Power supply | 380V/ 50HZ | Total power | 6KW |
Air pressure | 0.5-0.8Mpa | Air consumption | 200L/min |
Welding max frame | 2100mm×2500mm | Welding min frame | 490mm×600mm |
Welding profile height | 20mm-120mm | Welding profile width | 120mm |
Transmit speed | 30m/min | weight | 3200Kg |
dimension | 5000mm×3400mm×1550mm | ||
Details

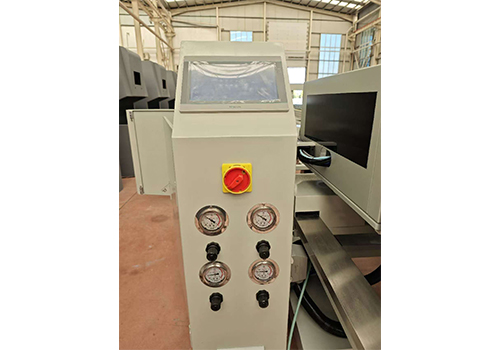

Cnc system to ensure machine welding automatically.

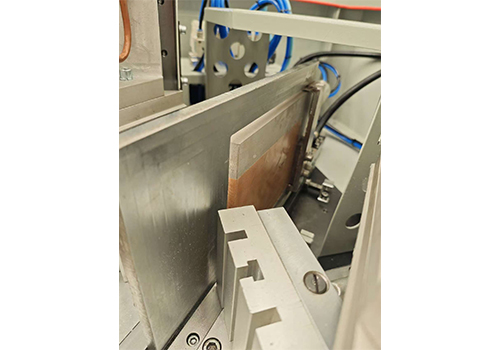

Positioning plate and welding plate can fix profile and welding more accurate.

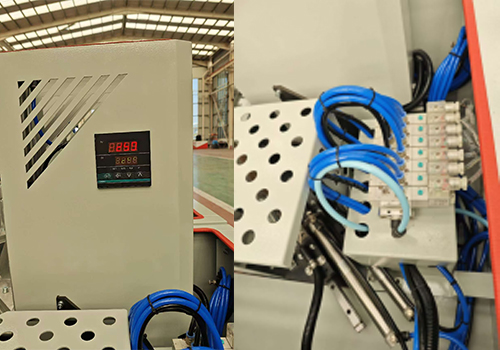

Each head has independent temperature control and solenoid valve, making the machine more stable and easy to maintain.

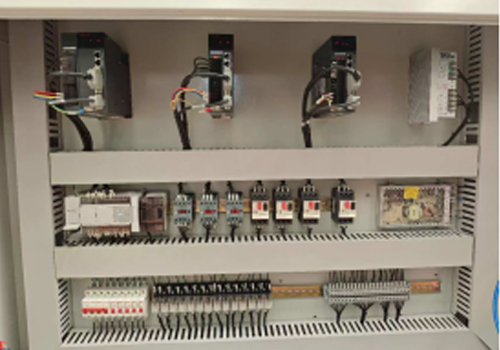

Servo motor controls can realize high quality welding.
