IGU equipment insulating glass production lines for glass factory from CARE machinery

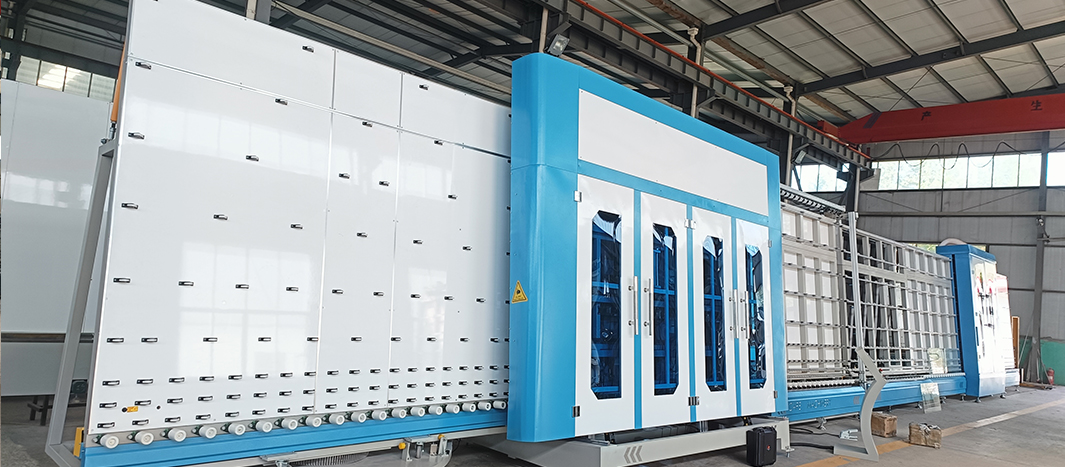

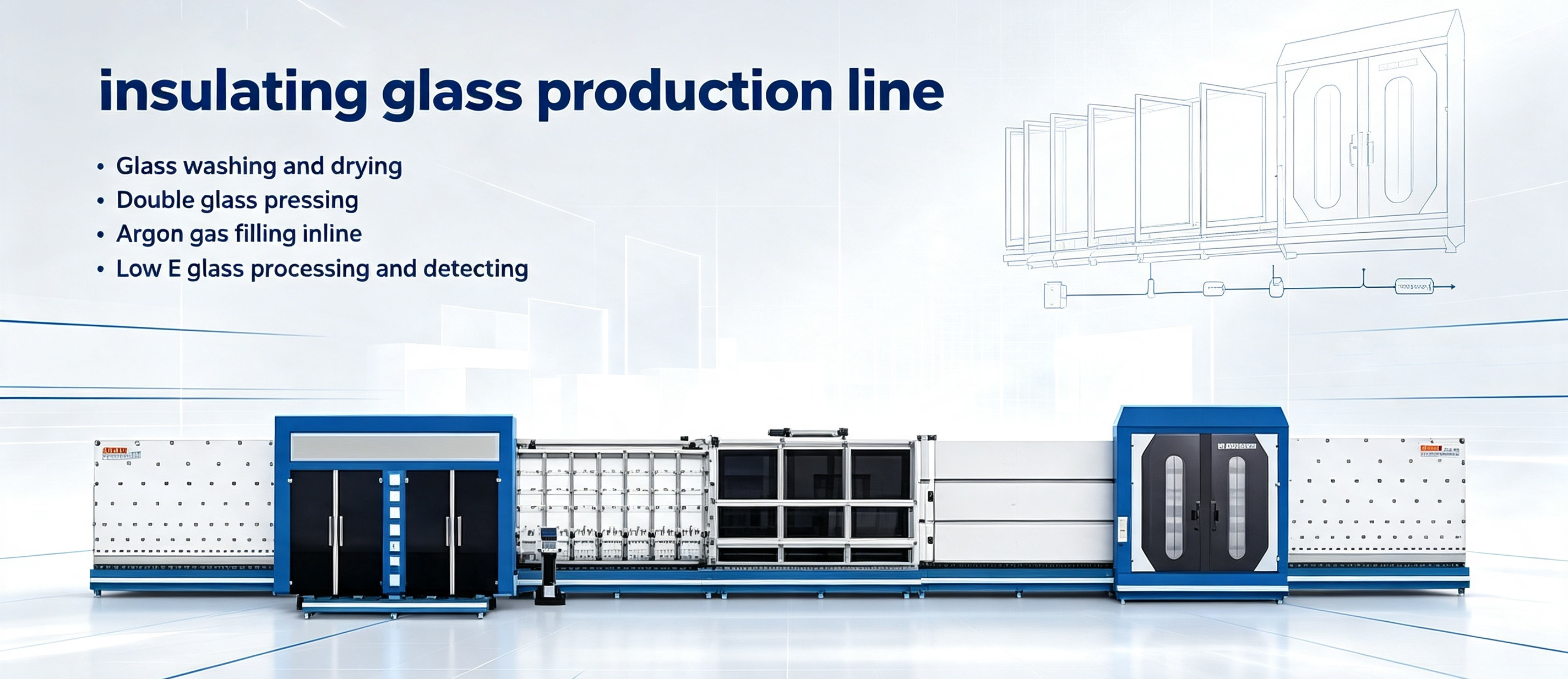

Caremach automatic insulating glass production line is integrated complete equipment for mass insulated glass manufacturing, combining high-speed glass washing dryer, auto glass assembling press, inline argon filling unit and automatic sealing station.
We provide flexible customized layout: match optional auxiliary machines according to your factory output, glass size and production process, one-stop solution for IG glass factory.
Suitable for architectural hollow glass, door & window insulating glass, curtain wall double glazing processing.
Standard Equipped：Glass Washing & Drying Machine + Automatic Plate Press Machine + Inline Argon Filling System
Optional Auxiliary Machines：Glass Cutting Machine, Glass Edge Polisher, Glass Lifter, Spacer Bending Machine, Automatic Sealant Extruder, Secondary Sealant Spreading Machine

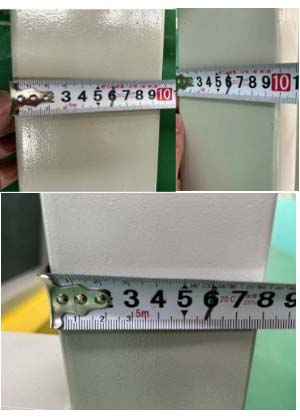

5 mm thickness steel tube, size 100x100mm, and 80x80mm strong machine frame.

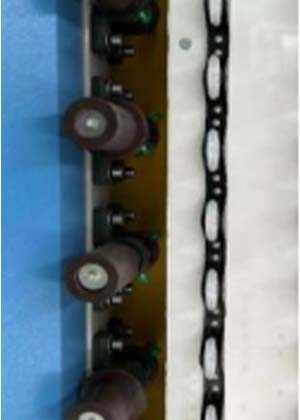

Strong conveyor wheel and bears

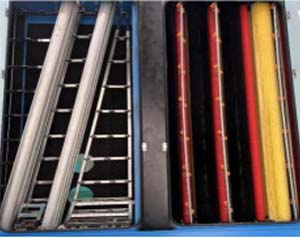

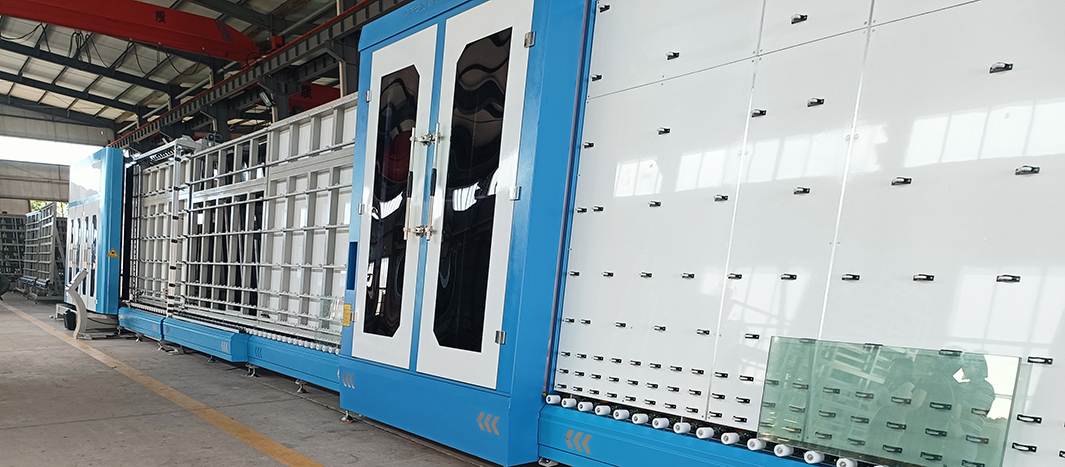

Washing part, 4 pairs of brushes, 2 pairs of air knives to make glass more clean.

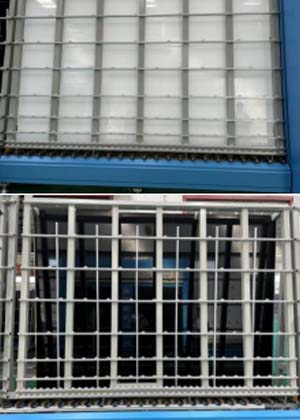

The third, fourth and fifth sections made with industrial aluminum profiles to ensure stable working

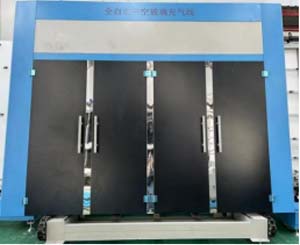

Air filling inline pressing part can ensure the argon content above 90%.

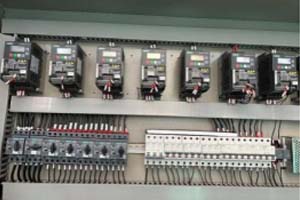

SIEMENS PLC and electrical parts improve working efficiency and long service life.
- Servo synchronous pressing & unfolding, four-corner simultaneous clamping
- Servo automatic side sealing to prevent argon leakage
- Auto scan & measure glass width & height before inflation
- Bottom-to-top inflation mode, fully discharge air inside cavity
- Adjustable inflation time & pressure, auto control air volume
- Auto switch inflation valves based on glass width to avoid argon waste
- Real-time inflation volume digital display
- Final argon concentration ≥95%, meet European energy-saving glass standard
Parameters | |||
Power supply | 380V 50Hz 3P | 380V 50Hz 3P | |
Total power | 30KW | 35KW | |
Process glass scale | Max glass sheet | 2000×3000mm | 2500×3500mm |
Min glass sheet | 280×480mm | 280×480mm | |
Original glass thickness | 3-30mm | 3-30mm | |
IG glass sheet thickness | 6-60mm | 6-60mm | |
Insulation thickness | 6-24mm | 6-24mm | |
Glass transmission speed | 0-50m/min | 0-50m/min | |
Dimension | L×W×H (mm) | 22700x2500x3000 | 26200x2500x3500 |
- Architectural exterior curtain wall insulating glass
- Residential & commercial door & window double glazing
- Energy-saving passive house hollow glass
- Sunroom, greenhouse insulated glass panels
- Decorative coated / Low-E energy-saving glass deep processing
Factory Strength: 15+ years glass machinery manufacturer, CE certified, export to 40+ countries
Custom Service: OEM & ODM layout design, factory site measurement, technical installation guide Supporting
Documents: Machine drawing, operation manual, test video, factory inspection welcome
- The insulating glass production line will be disassembled into multiple modules and packed with seaworthy plywood cases for ocean transportation, effectively preventing collision, moisture and rust during long‑distance sea shipment.
- Large‑size frames are wrapped with waterproof plastic film and steel reinforced for fixing; all spare parts are separately boxed with clear marks for easy unloading, customs clearance and reassembly at customer’s site.
