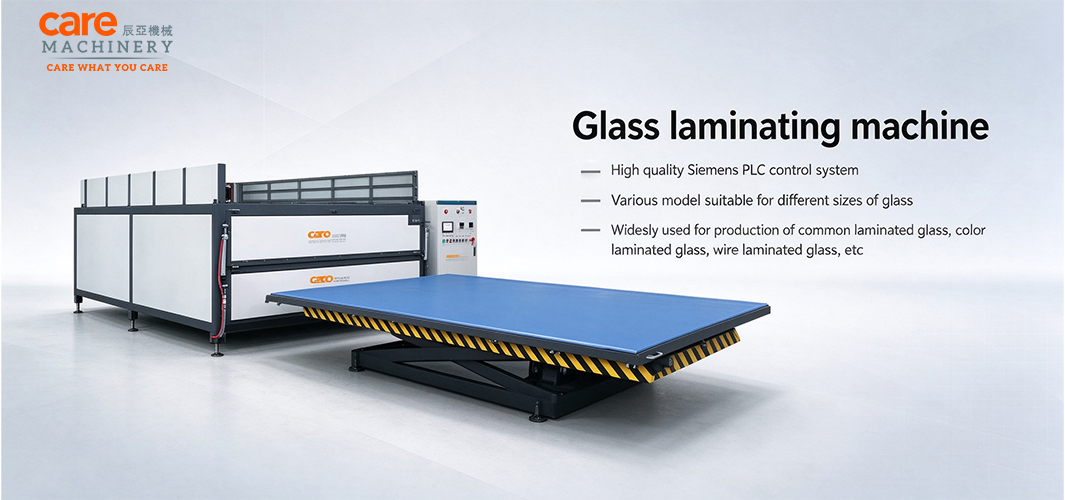

The Glass Laminating Machine is professional vacuum thermal‑lamination furnace for processing EVA interlayer‑film glass. It adopts nickel‑chromium alloy carpet‑type radiant heating together with full‑circulation hot‑air system.

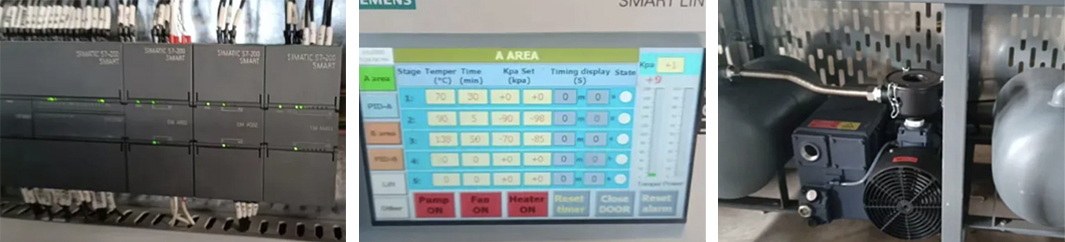

Complete set of Siemens PLC plus intelligent PID temperature control keeps furnace inner temperature difference within ±3 °C. With OEM precise power regulator, it adjusts heating output dynamically, saving over 50 % power consumption compared with conventional laminating furnaces.
High‑power turbine fan and four‑way adjustable air ducts realize dead‑angle‑free hot‑air circulation. High‑temperature resistant vacuum pump reaches vacuum degree ‑0.095~‑0.101 MPa, fitted with air storage tank for power‑off pressure retention and water‑air separation.
Dual‑independent heating‑chamber design: two chambers run separately or in cyclic mode, enabling simultaneous processing of glass with different process parameters and doubling production capacity. It is also equipped with high‑power forced cooling fans and wireless remote‑control vertical elevator for convenient loading & unloading. Multiple standard models cover different maximum glass dimensions. Shandong Care Machinery supplies standard and custom‑configured machines with competitive factory‑direct price.
| Model | Glass size | Control system | Floor space | Power | Process time | Output |
| LG-3-4 | 2200x3200mm | Siemens PLC | 4000x9500mm | 45KW | 40-120min | 84m2 |
| LG-5-4 | 2440x3660mm | Siemens PLC | 4500x10500mm | 58KW | 40-120min | 108m2 |
| LG-6-4 | 2500x4500mm | Siemens PLC | 4500x11300mm | 68KW | 40-120min | 134m2 |
