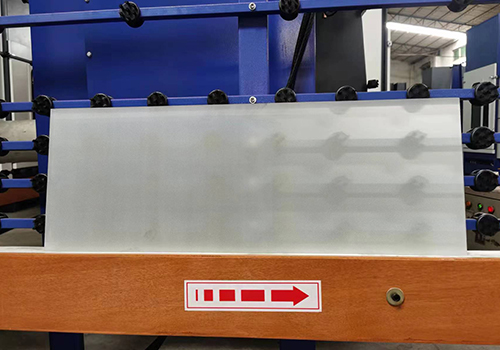

automatic glass sandblasting machine
Products Description
The operation of automatic glass sandblasting machine adopts touch screen combined with PLC control, which is highly automated and convenient and intuitive;
The function is equipped with automatic and manual modes, which can be flexibly switched according to different situations;
The nozzle is made of high-strength metal material, which is durable and reduces the frequency of replacement;
The dust collection system runs automatically, and the filter bag is cleaned by backblowing to ensure a dust-free environment. And automatic glass sandblasting machine is suitable for Vinyle film and design frosting
Technical Parameters
Automatic Gun | 3pcs |
Manual Gun | 1pcs |
Sandblasting Speed | 20-25m²/h |
Working Pressure | 0.6-0.8Mpa |
Max glass | 1600/2000/2500/*3660mm |
Glass thickness | 3-50mm |
Compressed Air Consumption | 3m³/min 22kw / 1000L gas tank |
Sand Used | Aluminium Oxide -60# 80# 100# |
Production capacity | 20M2/hours , 200M2/days |
Machine overall size | 6800*1500*2800mm |
Power | 3.5KW , 380 VOLT, 50 Hz, 3 PHSAE （ can customized ) |
Details

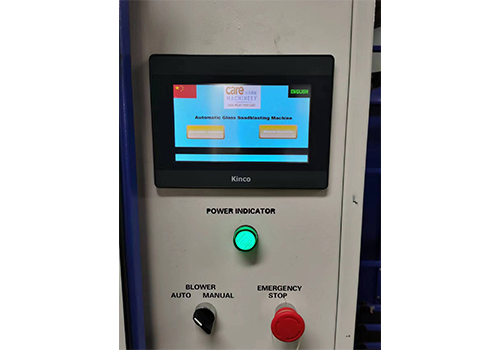

Intelligent operation screen
Intelligent operation screen

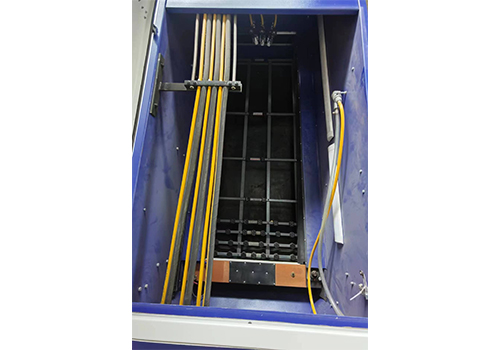

Inner structure of machine
