The machine will automatically position the length, height and angle
The cutting length of the machine itself is 4900mm, when the input length exceeds 4900 to 8000mm

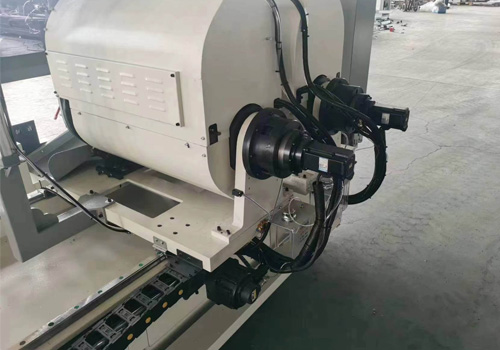

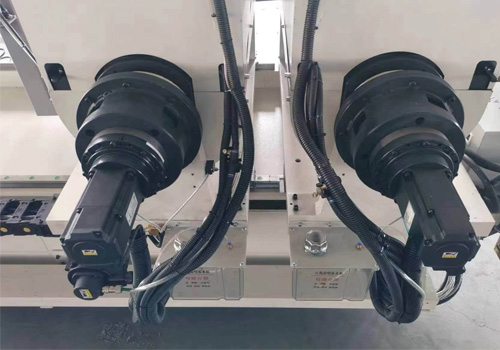

Any Angle Double Head Cutting Saw Machine (Model LJG2‑CNC‑550)
Products Description
Shandong Care Machinery’s LJG2‑CNC‑550 3‑Axis CNC Any‑Angle Double‑Head Cutting Saw delivers flexible rotary angle cutting for aluminum profiles. It supports automatic positioning for length, height and angle. Standard travel reaches 4900 mm; it can handle profile length up to 8000 mm with extended‑range compensation. Dual saw heads can work independently or simultaneously. It is widely used for aluminum door‑window, curtain‑wall, and new‑energy‑vehicle components such as curved anti‑collision beams, also compatible for wood profile cutting. Equipped with carbide‑tipped saw blade for fast, high‑precision sawing. Simple operation, reliable performance and easy maintenance.
Core Advantages
3‑Axis CNC Automatic Positioning & Extended‑Range Compensation
CNC system automatically sets length, height and cutting angle. Base sawing length is 4900 mm; when input target length exceeds 4900 mm up to 8000 mm, machine enables automatic position compensation for extra‑long profiles. Eliminates manual repeated measuring, improves accuracy for long‑size aluminum workpieces.
‑22.5° ~ +22.5° Arbitrary Rotary Angle Cutting
Supports stepless arbitrary angle rotary cutting within‑22.5° ~ +22.5°. Dual heads can run separately or simultaneously, completing required length and bevel‑angle cutting in one single pass. Perfect for special‑angle and irregular‑cut tasks for new‑energy vehicle aluminum parts.
High‑Speed & High‑Precision Sawing with Carbide‑Tipped Saw Blade
Adopts high‑quality carbide‑tooth saw blade, running at 2800 r/min. Fast cutting speed, clean burr‑free cutting surface, reduces secondary finishing workload and improves batch‑production throughput.
Technical Parameters
| Input power | 380V/50Hz |
| Saw head motor power | 2×3KW |
| Rotation speed | 2800 r/min |
| Air pressure | 0.5~0.8MPa |
| Sawing length | MAX 8000mm |
| Sawing width | MAX 150 mm |
| Sawing height | MAX 270 mm |
| Sawing angle | -22.5°～ 0～+22.5° (arbitrary angle rotary cutting) |
| Saw blade specification | Φ550×4.4×Φ30 Z=120 |
| External dimension | 5800×1980×1750mm |
| Weight | 2000Kg |
Working Flow
- 1.Input target cutting length, height and rotary‑angle parameters via CNC touch‑screen. For length over 4900 mm, machine activates automatic position‑compensation function.
- 2.Load and clamp aluminum / wood profile firmly on worktable.
- 3.Select working mode: dual‑head simultaneous cutting or single‑head independent cutting.
- 4.Saw heads rotate to preset angle and perform sawing operation.
- 5.Finish one‑pass cutting of required length and bevel angle, unload finished profile for next‑step processing.
Why Choose Shandong Care Machinery
- Professional Chinese manufacturer for aluminum profile CNC cutting equipment
- Complete running test before shipment; pre‑delivery video inspection available
- Support customized requirement for special‑size profile production
- English operation manual, remote technical guidance and spare‑parts supply for overseas customers
