3 axis water jet cutting machine
Finished machine base, inner and outer double-layer steel plate structure, beam reinforcement, steel plate and beam combined for full welding, inner steel thickness 8mm, outer thickness 12mm, strict dustproof and waterproof design, improving the service life of all operating machine parts.
Finished machine base, inner and outer double-layer steel plate structure, beam reinforcement, steel plate and beam combined for full welding, inner steel thickness 8mm, outer thickness 12mm, strict dustproof and waterproof design, improving the service life of all operating machine parts.
1.Square cutting platform, long service life and high levelness
2.Adopt high-precision one-piece head holder, no need to change the height of the jewel from a new measurement
3.Adopt imported roller screw guide, Siemens electrical appliances, Shanghai CNC Weihong system
Max glass size | 2500mm*1500mm |
Model | 2515 |
Cutting accuracy | ±0.1mm |
X, Y axis accuracy | ±0.01mm |
processing speed | 0.3－4.0m/min(Depends on material) |
Repeat positioning accuracy | 0.1mm |
Maximum feed speed | 6000mm/min |
Maximum fast moving speed | 10000mm/min |
Beam material＼High-pressure water switch | Cast structure \ pneumatic high pressure water switch |
Longitudinal beam material | Cast iron |
Z, X, Y axis control method | Servo |
Seal cover and dowel | Stainless steel 304 |
Machine construction materials | 8mm*12mm |
Machine base | Precision machining |
Cutting material | Almost any material |
Control System | AC Servo System |
Main motor power | 37KW |
Maximum working pressure | 420Mpa |
Maximum flow rate of high pressure water | 3.8L/min |
Rotation radius | 270mm |
Maximum operating speed | 8m/min |

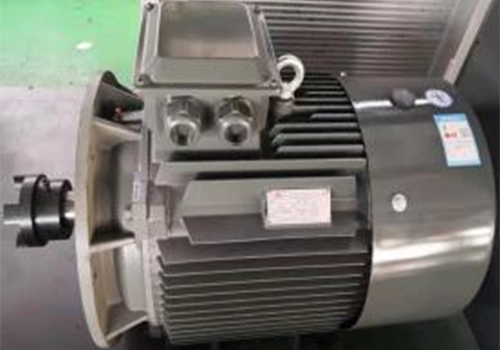

Siemens 37KW conventional asynchronous motor
Siemens 37KW conventional asynchronous motor
high pressure supercharger
It has all-round safety protection devices such as pressure detection, limit alarm and automatic protection.

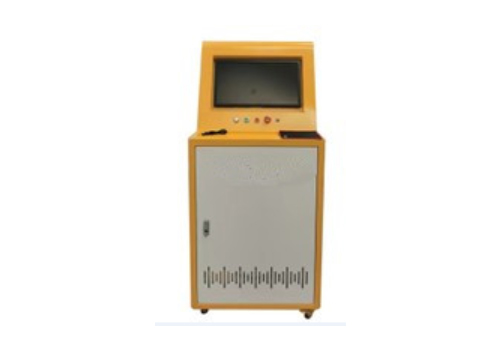

CNC system
The software can recognize CAD drawings and common design software in formats such as ASC, IGS, DXF, DWG, etc.
Sand supply system

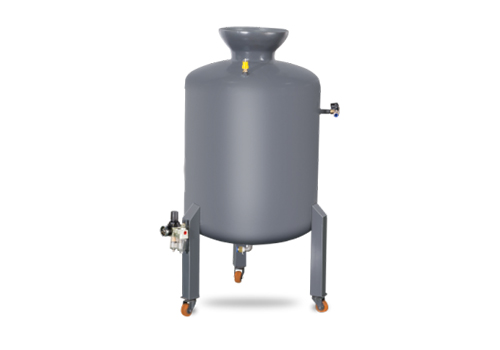

The machine adopts pressure sand supply. The pressure boiler provides pressure to spray the sand flow onto the glass to complete the processing.
