window water slot drilling machine
Window water slot drilling machine is specially used for processing various drainage grooves and air pressure balance grooves for plastic doors and windows.
Products Description
- Window water slot drilling machine is specially used for processing various drainage grooves and air pressure balance grooves for plastic doors and windows.
- Independent milling groove feeding structure, no professional maintenance required, simple operation.
- The milling groove length is adjustable within 100mm, with a wide range of uses.
- Through the combination of the upper mold and the cross mold, the symmetrical hole grooves at both ends of the profile can be efficiently processed.
- The angle and height of the toolof window water slot drilling machinecan be adjusted according to different profile types. By pressing once, the trough processing at both ends can be completed, with high production efficiency, which can meet the needs of large-scale production.
Technical Parameters
Model | SCX2-30×6 |
Power | 0.38x2w |
Voltage | 220V/50HZ |
Air pressure | 0.5-0.8MPa |
Rotation rate | 25000 r/min |
Miller size | φ5 φ4 |
Air Consumption | 30L/min |
Slot Depth | 30mm |
Slot Length | 30-60mm |
Dimension | 2100×860×1500mm |
Details

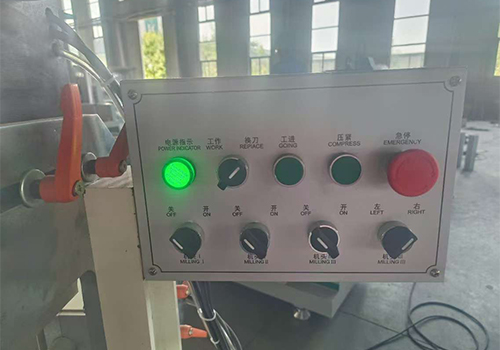

Operation panel can control 3 drills work together or individually

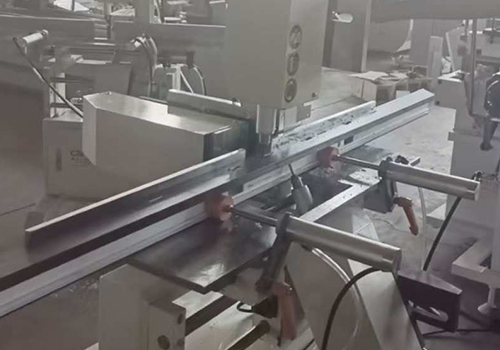

Easily process three surfaces
