Shandong Care Machinery Technology Co., Ltd.

pvc window corner cleaning line

  1. This pvc window corner cleaning line adopts a new corner cleaning process. It revolutionizes the way fillet welding slag is handled, ensuring a more thorough and precise cleaning result.

Products Description

This pvc window corner cleaning line adopts a new corner cleaning process. It revolutionizes the way fillet welding slag is handled, ensuring a more thorough and precise cleaning result.

Programming the machine is simple and intuitive. Operators can easily enter and adjust parameters, and storage capabilities allow for quick access and reuse of various programs. This not only saves time but also improves work efficiency.

This pvc window corner cleaning line is very gentle when it comes to laminating or spraying profiles. It does not cause any damage to the surface finish, making it an indispensable and reliable tool for the production of high-end system doors and windows. The quality and appearance of the final product are well protected.

In terms of maintenance, its design is user-friendly. Its structure and components are easy to access and repair, significantly reducing repair frequency and costs. In the long run, this means lower usage costs and higher economic benefits for businesses.

Technical Parameters

Comprehensive cleaning time

7s

Working width

20-180mm

Working height

20-180mm

Groove width

3mm

Voltage

380V/AC

Groove Depth

0.3mm

Input frequency

50HZ

Power

1500w

Air pressure

0.4-0.7Mpa

Air consumption

50L/min

Main milling cutter speed

2800r/min

Details
pvc window corner cleaning line

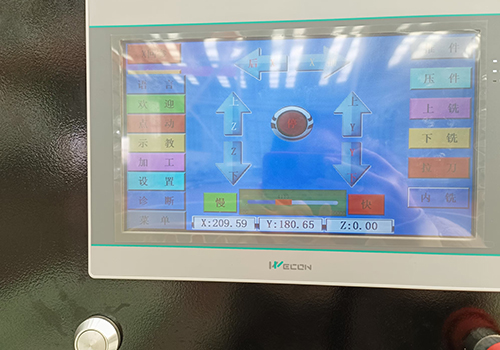

HMI touching screen for operating easily

pvc window corner cleaning line

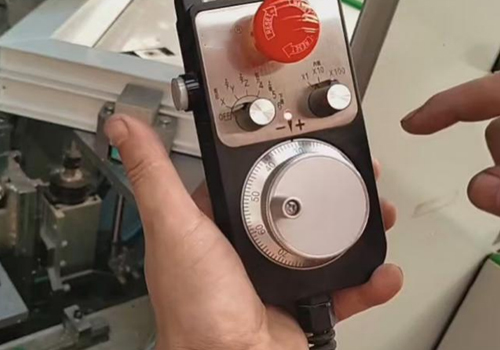

Handle can make programming more accurate
