Glass washing and drying 2 in 1 function
Stainless steel machine body
Various models and working range from 2000mm to 2500mm

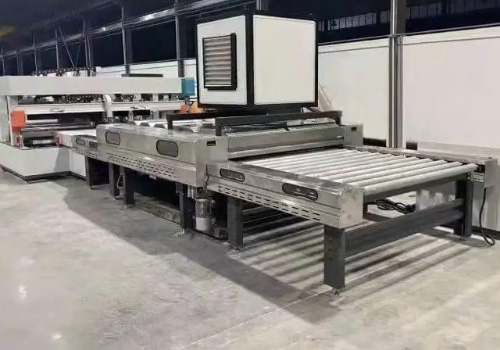

Horizontal glass washing machine 2000mm
Products Description
Our HW2000 horizontal glass washing machine delivers integrated automatic washing and drying for flat glass. Constructed with full stainless‑steel body, it is built for humid glass‑workshop conditions. The 2000mm working‑width model is widely chosen for medium‑size insulated glass factories. We also offer the HW2500 variant for larger‑size glass processing.
✅ All‑in‑one washing & drying
✅ Whole washing‑drying unit liftable up to 350 mm for maintenance
✅ Anti‑rust stainless‑steel frame
✅ Gear‑driven transmission, inverter speed adjustment with digital display
Core Features
Horizontal Glass Washing Machine 2000mm (HW2000 / HW2500)
The complete washing and drying assembly lifts as one unit up to 350 mm, making roller cleaning, brush replacement and daily maintenance fast and convenient.
Fitted with 3 pairs φ160 mm brushes with stainless‑steel shafts, offering stable and uniform cleaning performance for flat glass surfaces.
Two pairs high‑output air knives produce powerful airflow, achieving spot‑free drying without residual water marks.
Air inlet of blower is equipped with air filter to block dust, ensuring clean air channel and consistent drying effect under long‑time continuous production.
Main gear‑drive transmission; conveyor speed controlled by frequency inverter with digital readout panel for easy parameter setting.
Adjustable washing clearance, freely adapts glass thickness from 3 mm‑25 mm.
Stainless‑steel machine shell resists corrosion from water and detergent, extending service life in wet workshop environment.
Technical Parameters
| Model | Max width | Min size | Thickness | Speed |
| HW2000 | 2000mm | 400x400mm | 3-25mm | 0-10m/min |
| HW2500 | 2500mm | 400x400mm | 3-25mm | 0-10m/min |
Application Range
This horizontal glass washer is designed for pre‑cleaning before further glass processing, perfectly matching insulated glass assembly lines. Suitable glass types include:
Insulated / double‑glazing glass
Architectural window & door flat glass
Mirror glass
Furniture decorative flat glass
It can be connected inline with glass edging machine and insulated‑glass assembly line to boost your overall factory throughput.
Customization & After‑Sales Support
Optional upgrade: special soft brushes for Low‑E coated glass upon customer request.
Spare‑parts supply: brushes, air knives, conveyor rollers, blower assemblies are available.
Service: operation manual, installation guidance, online technical support for troubleshooting.
