CNC horizontal glass milling and drilling machine with auto tool‑changer. Realize drilling, milling, cutting & edging for flat glass 3‑40mm, max 3000×1500mm, factory direct price.

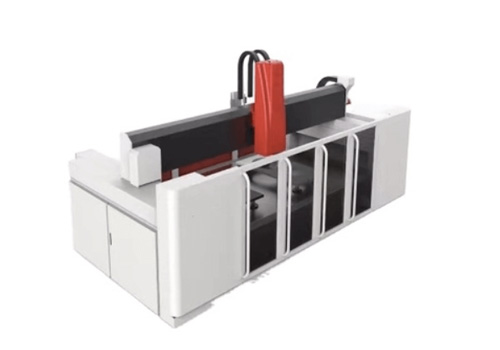

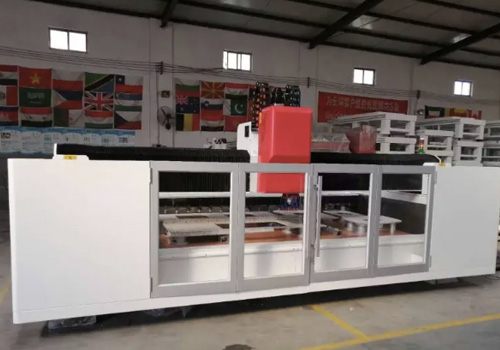

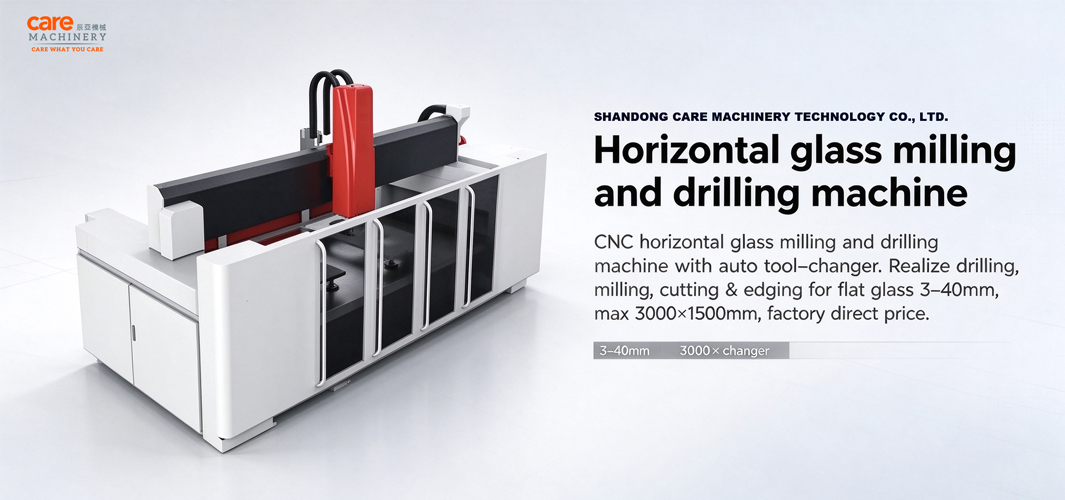

Horizontal glass milling and drilling machine
Products Description
Our horizontal glass milling and drilling machine is multi‑functional CNC glass working center. It completes drilling, milling, cutting and edge‑finishing in one‑time clamping. Equipped with automatic 8‑position tool magazine for auto tool change, ideal for custom‑shaped furniture, shower‑room and architectural flat‑glass mass‑processing.
Product Overview

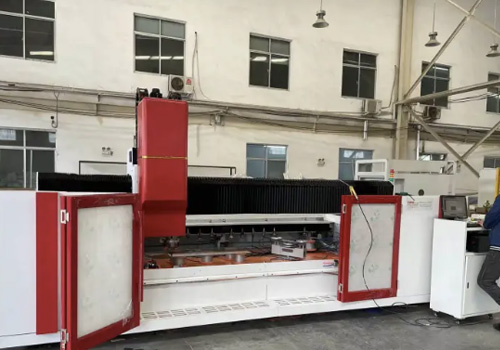

The Horizontal Glass Milling and Drilling Machine is heavy‑duty CNC glass working center integrating cutting, milling, drilling and edging functions.
Machine bed and cross‑beam adopt thick welded steel structure with stress‑relief heat‑treatment, guaranteeing long‑term structural rigidity and minimal deformation under continuous heavy‑load production. Surface finished with automotive‑grade anti‑rust paint for extended service life in humid glass‑workshop environment.
Powered by AC servo motors with synchronous belt‑pulley transmission system. Automatic lubrication system for lead‑screw nuts and guide‑rail sliders reduces wear. Water‑cooled spindle prolongs tool service life. Standard 8‑station tool magazine supports automatic tool‑change, greatly improving production efficiency for multi‑procedure glass jobs.
It handles glass size range from 200×200 mm up to 3000×1500 mm, glass thickness 3‑40 mm. Shandong Care Machinery provides standard and custom‑configured machines with competitive factory‑direct price.
Technical Parameters
| X axis stroke | 3000mm |
| Y axis stroke | 1500mm |
| Z axis stroke | 450mm |
| Tool store | 8tools,can be customized |
| Spindle cooling | Water cooling |
| Total power | 13KW |
| Speed(X,Y) | 10m/minute |
| Max glass processing size | 3000*1500mm |
| Min glass processing size | 200*200mm |
| Glass thickness | 3-40mm |
Core Advantages
Multi‑function One‑clamping Processing
Realize drilling, milling, cutting, internal & external edge‑grinding in single clamping. Avoid positioning errors caused by repeated manual re‑fixture, improve finished‑product consistency and cut auxiliary handling time.
Heavy‑duty Stress‑relieved Welded Frame
Welded steel bed and beam go through special heat‑treatment to release internal stress. Anti‑rust automotive paint prevents corrosion in water‑spray glass‑processing environment. Machine maintains stable accuracy after years of heavy‑duty shift‑work.
AC Servo Drive + Auto‑lubrication System
AC servo motor drives spindle via synchronous belt and pulley for smooth, low‑vibration movement. Automatic lubrication unit regularly oils lead‑screw nuts and guide‑rail sliders, reduce manual maintenance work and extend service life of transmission components.
Automatic Tool‑magazine for Efficient Production
Standard 8‑position tool magazine enables automatic tool change between drills, milling cutters and grinding wheels. No frequent manual tool swapping; perfect for mixed‑order multi‑variant glass production. Tool‑magazine capacity can be customized on request.
Customization & Optional Configurations
- Custom tool‑magazine capacity (more than 8‑tools) for complex multi‑tool jobs
- Extended X/Y axis travel for larger‑format glass sheets
- Upgrade high‑precision vacuum work‑table for thin / large‑size glass anti‑shift processing
- Multi‑language HMI language‑pack customization for overseas operators
