glazing bead cutting saw
PVC glazing beads cutting saw is the important machine for fabricating glass to PVC window frame
Products Description
PVC glazing beads cutting saw is the important machine for fabricating glass to PVC window frame.
1,Used for 45 degree glass batten cutting and pressure Angle milling.
2,Equipped with universal modeling, one time two pieces of glass batten cutting.
3, Easy operation of pneumatic driving.
4,Horizontal structure for stable operation.
Technical Parameters
Model | SJBW-1800 |
Input power | 1.5kw |
power supply | 380v/50Hz |
Air pressure | 0.5-0.8MPa |
Rotating speed | 2800r/min |
Air consumption | 2L/min |
Processing profile length | 320-1800mm |
Processing profile height | 29mm |
Processing profile width | 100mm |
Dimensions | 1350x500x1350mm |
Details

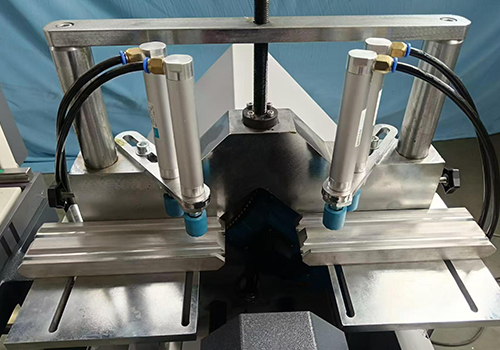

Can process two profiles at the same time

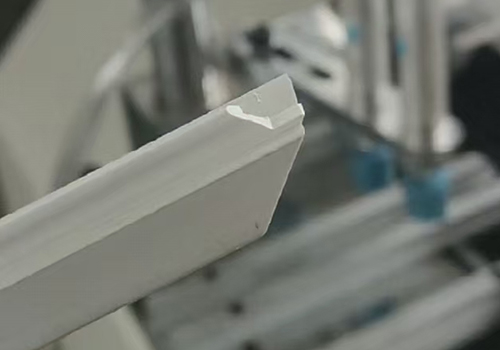

Renderings after cutting
