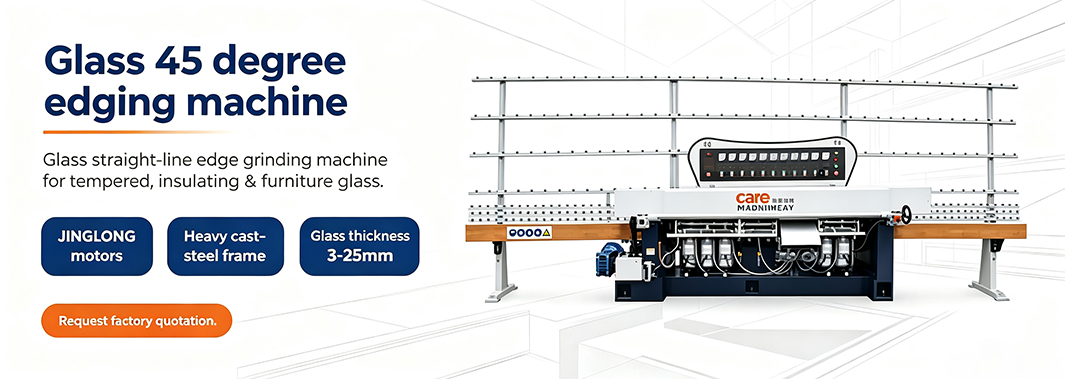

Glass 45 degree edging machine
Products Description
The Glass 45‑Degree Edging Machine is multi‑functional flat‑glass deep‑processing equipment for straight‑edge and 0‑45° bevel‑edge grinding and polishing. It adopts advanced chainless bearing‑rolling conveying mechanism, with 10 grinding heads (7 front heads + 3 rear heads).
All grinding heads can swing freely between 0°‑45°. While front 7 heads work for 45‑degree bevel processing, rear 3 heads can stay at 0° to finish bottom‑edge grinding in one pass. Equipped with PLC control + HMI touch‑screen, it supports automatic / manual adjustment for glass thickness, bevel angle and conveyor‑rail lifting. Frequency‑conversion feeding‑speed regulation realizes one‑pass coarse grinding, fine grinding, chamfering and polishing. Widely used for tempered glass, shower‑door glass, furniture glass and architectural insulating‑glass pretreatment.
Product Advantage
- ✅ Multi‑Angle Flexible Processing, One‑Pass Multi‑Procedure Completion10‑head combined swingable grinding system. Front 7 grinding heads and rear 3 grinding heads can swing independently within 0‑45°. Realize 45° bevel grinding and bottom‑edge grinding simultaneously in one feeding pass. Complete coarse grinding, fine grinding, chamfering and polishing without re‑clamping glass, greatly improving production throughput.
- ✅ Chainless Bearing‑Rolling Conveying for Stable TransportChainless bearing‑rolling structure avoids chain‑wear‑caused vibration or glass offset. It holds glass panels stably during high‑precision bevel processing and reduces glass breakage rate for small‑size workpieces (minimum 40×40 mm).

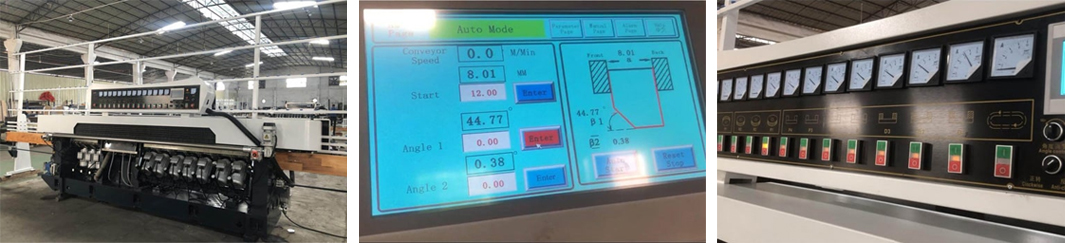

- ✅ PLC Intelligent Adjustment, Simple Operator WorkflowPLC controls glass thickness, bevel angle and conveyor‑rail lifting; supports automatic or manual mode. Human‑machine interface visual parameter display; frequency‑conversion stepless feeding‑speed adjustment adapts different glass material and surface‑finish requirements. Lower requirement for operator skills.
- ✅ High‑Precision Polishing Quality for High‑End Glass OrdersStable mechanical structure delivers consistent mirror‑level polishing effect for bevel edges. Suitable for high‑quality furniture, shower‑room and decorative glass processing, meets strict appearance standards of finished glass products.
Main Technical Features
- 1.Chainless bearing‑rolling transport mechanism, stable glass holding, low vibration during grinding.
- 2.Ten grinding‑head configuration:7 front swingable heads +3 rear swingable heads, each group adjustable 0‑45° independently.
- 3.One‑pass integrated workflow: coarse grinding → fine grinding → chamfering → polishing.
- 4.PLC control system; support automatic / manual adjustment for glass thickness, bevel angle and guide‑rail lifting.
- 5.HMI human‑machine interface for parameter visualization; frequency‑conversion stepless feeding‑speed regulation.
- 6.Rigid heavy‑duty machine frame, reduce vibration during long‑hour heavy‑load workshop running.
- 7.Easy‑access layout for grinding‑wheel replacement and daily water‑tank cleaning & maintenance.
Technical Parameters
| Power | 27.5KW |
| Voltage | 380V/50HZ |
| Bevel angle | 0-45° |
| Glass thickness | 3-30mm |
| Feeding speed | 0.5-8m/min |
| Min glass size | 40x40mm |
| Weight of machine | 6800kg |
| Overall size(LxWxH) | 8500x1300x2400mm |
Frequently Asked Questions
Q1: How many grinding heads does this 45‑degree edging machine have?
A: Equipped with total 10 grinding heads:7 front grinding heads and 3 rear grinding heads. Both groups can swing independently within 0‑45°.
Q2: What processing can be finished in one pass?
A: It completes coarse grinding, fine grinding, chamfering and polishing in one feeding pass. Front heads make 45° bevel while rear heads grind glass bottom‑edge simultaneously.
Q3: What is the minimum glass size this machine can process?
A: Minimum glass processing dimension:40 × 40 mm, glass thickness range:3‑30 mm.
Q4: What is the advantage of chainless bearing‑rolling transport?
A: It eliminates vibration and positioning offset caused by traditional chain wear. It transports glass more stably and reduces break‑down risk for small‑size glass panels.
Q5: Can I switch between automatic and manual adjustment mode?
A: Yes. PLC system supports both automatic and manual adjustment for glass thickness, bevel angle and guide‑rail lifting via HMI touch‑screen.
Q6: Can you customize voltage for overseas customers?
A: Standard power is 380V/50Hz three‑phase. Custom‑made 220V‑60Hz power supply is available.
Q7: What is your normal lead‑time after placing an order?
A: Standard‑configuration machine: 30‑40 working days; customized‑version: 35‑45 working days.
Q8: What after‑sales support can I get?
A: Operation manuals, video training tutorials, remote troubleshooting and long‑term spare‑parts supply. Main components enjoy 12‑month warranty.
