curtain wall notching machine
Curtain wall notching machine is a new machine for the development of the aluminum doors & windows and lighting skylight industry.
Curtain wall notching machine is a new machine for the development of the aluminum doors & windows and lighting skylight industry. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance etc. Used for processing aluminum doors& windows and curtain walls. Imported carbide saw blade assure accurate processing and high endurance.. Get the special angle demanded by profiles when the 2 saw blade work together at one time.
Aluminum curtain-wall and lighting skylight profiles are large in size and have special end processing angles, so a special curtain wall notching machine is required to complete the processing.

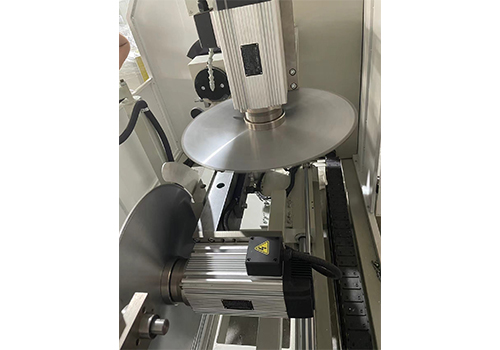

The curtain wall notching machine is equipped with two synchronous saw blades, which are directly driven by the spindle motor with a speed of 2800r/min.
The saw blade diameter is 500mm (optional 600mm) and the cutting depth is 160mm.
Each saw blade can swing at any angle within a 90-degree range, and the machine is equipped with angle digital display mitre.
Power supply | Three-phase and four-line 380V 50Hz |
Motor power | Power 6Kw |
Rotation speed | 2800r/min |
Working air pressure | 0.5MPa~0.8MPa |
Air consumption | 60L/min |
Cutting angle | +45°~-45° |
Cutting depth(level & vertical) | 90°160*160mm，45°120*120mm |
Feeding speed | Auto speed 0~ 3m/min |
Saw blade size | 500mm*4.4mm*30mm Z=120 |
Contour dimension | 3140mm×1380mm×1800mm |
Net weight | 2500kg |

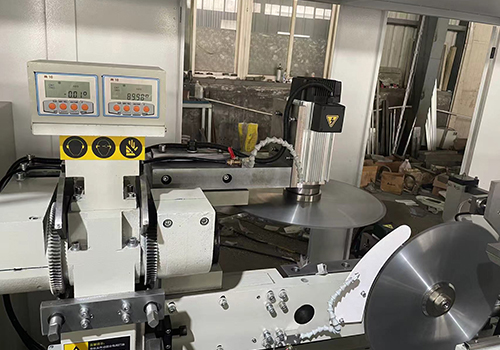

Digital display makes easy operation for two blades angle adjusting. And it will be more accurate to process aluminum profiles.

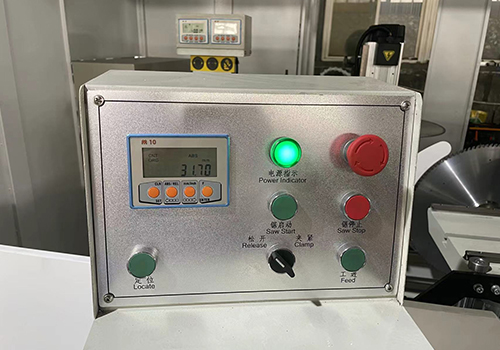

Control panels can show the length of profile and finish work at high efficiency via simple instruction.

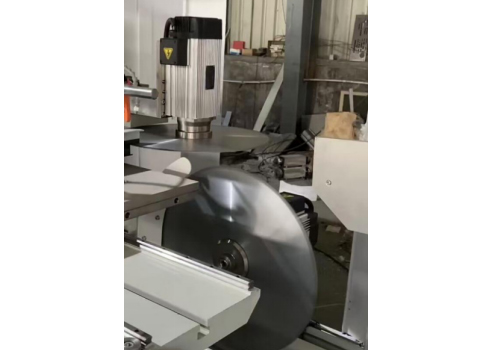

Spindle motors generate low heat, run quietly and are highly efficient. It can achieve high-speed cutting of aluminum profiles.
Two blades can achieve from -45 to 45 degree adjustment and cutting range is bigger for 120mm at 45 degree and 160mm at 90 degree.
